XT Series
›

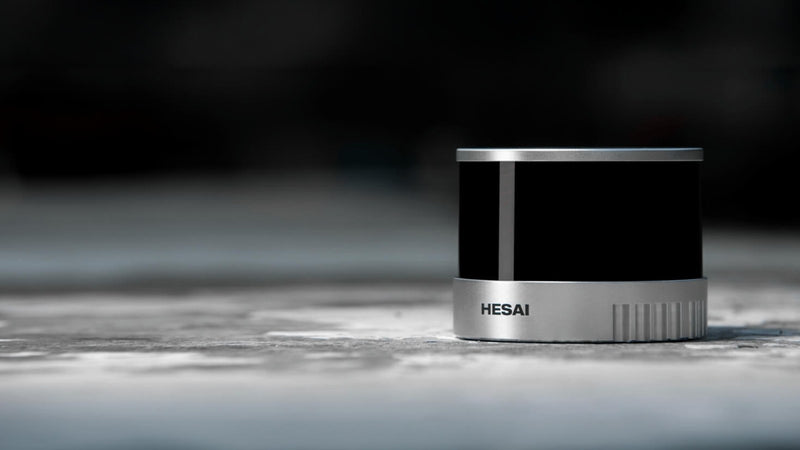

Hesai XT16
Hesai XT16
Compact 16-channel mid-range LiDAR. Zero minimum detection range for cost-sensitive automation applications.
Channels16
Max Range100 m
H-FOV360°
V-FOV30°
Unit Price (USD)
$2,600.00
Pricing excludes shipping & applicable taxes. Contact us for volume pricing.
Exclusive Hesai distributor for Southeast Asia · Local technical support available · Enterprise & volume orders welcome
Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 16 |
| Max Range | 100 m (10% reflectivity) |
| Horizontal FOV | 360° |
| Vertical FOV | 30° |
| Range Accuracy | ±1 cm (1σ) |
| Min Detection Range | 0 m |
| Point Rate | 320 Kpt/s |
| Wavelength | 905 nm |
| Laser Class | Class 1 (IEC 60825-1) |
| Power Consumption | ≤ 10 W |
| Weight | ~430 g |
| IP Rating | IP67 |
| Operating Temp | -40 °C to +85 °C |
| Interface | Ethernet |
Have a question about the Hesai XT16?
Our engineering team can help with integration advice, evaluation samples, SDK support, and volume pricing for your project.
