AT Series
›

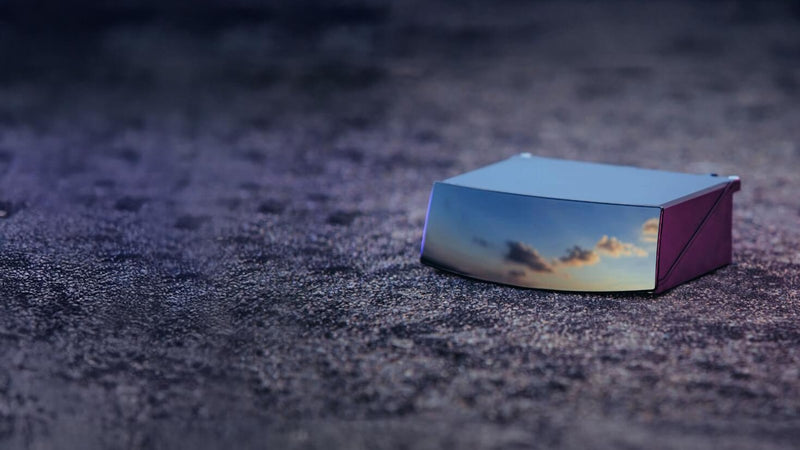

Hesai AT128
Hesai AT128
128-channel automotive LiDAR. ISO 26262 ASIL-B certified and production-validated across 100+ vehicle models.
Channels128
Max Range200 m
H-FOV120°
V-FOV25.6°
Unit Price (USD)
$1,750.00
Pricing excludes shipping & applicable taxes. Contact us for volume pricing.
Exclusive Hesai distributor for Southeast Asia · Local technical support available · Enterprise & volume orders welcome
Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 128 |
| Max Range | 200 m |
| Horizontal FOV | 120° |
| Vertical FOV | 25.6° |
| Angular Resolution (V) | 0.2° |
| Point Rate | 2.56 Mpt/s |
| Wavelength | 905 nm |
| Laser Class | Class 1 (IEC 60825-1) |
| Power Consumption | ≤ 26 W |
| Operating Voltage | 12 V / 24 V |
| Weight | 695 g |
| Dimensions | Ø120 × 72 mm |
| IP Rating | IP67 |
| Operating Temp | -40 °C to +85 °C |
| Certifications | ISO 26262 ASIL-B, CE, FCC, IATF 16949 |
| Interface | Ethernet (100BASE-T1) |
Have a question about the Hesai AT128?
Our engineering team can help with integration advice, evaluation samples, SDK support, and volume pricing for your project.
