QT Series
›

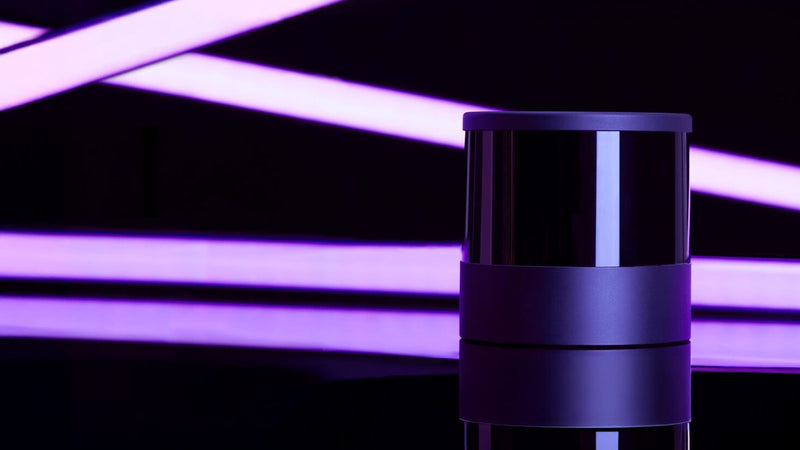

Hesai QT128
Hesai QT128
Short-range LiDAR with extreme 105° vertical FOV — ideal for ground-level and overhead perception in robotics.
Channels128
Max Range~30 m
H-FOV360°
V-FOV105°
Unit Price (USD)
$5,200.00
Pricing excludes shipping & applicable taxes. Contact us for volume pricing.
Exclusive Hesai distributor for Southeast Asia · Local technical support available · Enterprise & volume orders welcome
Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 128 |
| Max Range | ~30 m |
| Horizontal FOV | 360° |
| Vertical FOV | 105° |
| Point Rate | 1.28 Mpt/s |
| Wavelength | 905 nm |
| Laser Class | Class 1 (IEC 60825-1) |
| Power Consumption | ≤ 18 W |
| IP Rating | IP67 |
| Operating Temp | -40 °C to +85 °C |
| Certifications | ISO 26262 ASIL-B |
| Interface | Ethernet (100BASE-T1) |
Have a question about the Hesai QT128?
Our engineering team can help with integration advice, evaluation samples, SDK support, and volume pricing for your project.
