Pandar Series
›
Hesai Pandar128

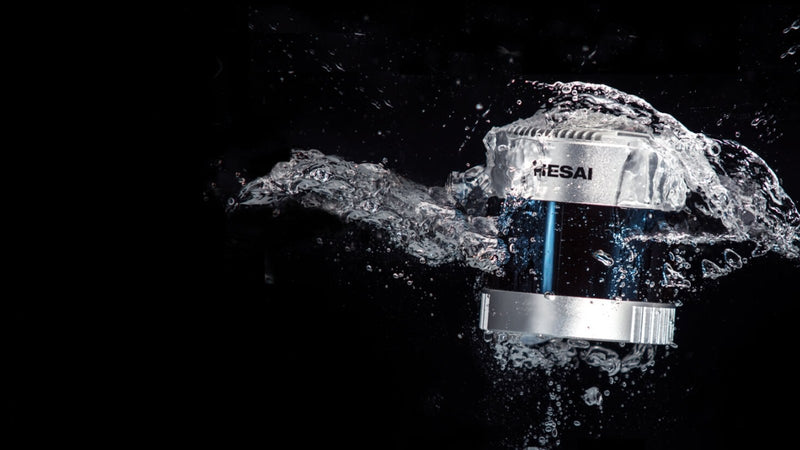

Hesai Pandar128
Premium 128-channel LiDAR for survey-grade HD mapping. 3.456 Mpt/s with E3X enhanced echo processing.
Channels128
Max Range200 m
H-FOV360°
V-FOV40°
Unit Price (USD)
$34,500.00
Pricing excludes shipping & applicable taxes. Contact us for volume pricing.
Exclusive Hesai distributor for Southeast Asia · Local technical support available · Enterprise & volume orders welcome
Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 128 |
| Max Range | 200 m (10% reflectivity) |
| Horizontal FOV | 360° |
| Vertical FOV | 40° |
| Angular Resolution (H) | 0.1° |
| Point Rate | 3.456 Mpt/s |
| Returns | E3X triple echo |
| Wavelength | 905 nm |
| Laser Class | Class 1 (IEC 60825-1) |
| Power Consumption | ≤ 36 W |
| Weight | ~1750 g |
| IP Rating | IP67 |
| Operating Temp | -40 °C to +85 °C |
| Interface | Ethernet (1000BASE-T) |
Have a question about the Hesai Pandar128?
Our engineering team can help with integration advice, evaluation samples, SDK support, and volume pricing for your project.
