FT Series
›

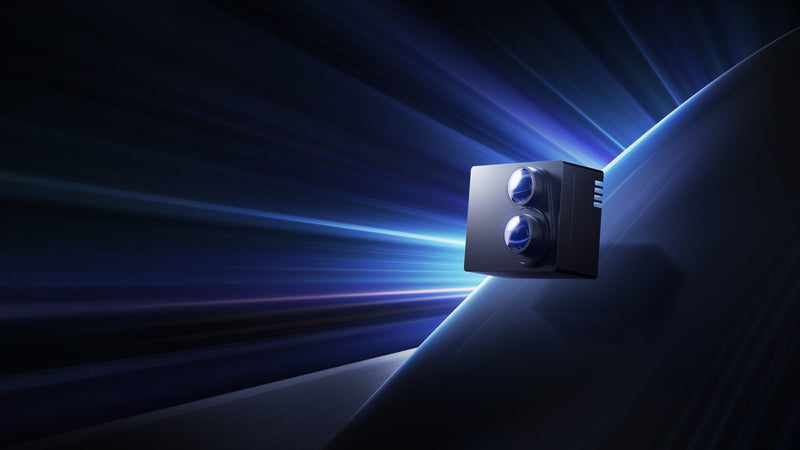

Hesai FTX
Hesai FTX
Fully solid-state e-scanning LiDAR for blind-spot and close-range vehicle coverage. No moving parts.
ChannelsSolid-State
Max Range~30 m
H-FOVWide
V-FOVWide
Unit Price (USD)
$1,200.00
Pricing excludes shipping & applicable taxes. Contact us for volume pricing.
Exclusive Hesai distributor for Southeast Asia · Local technical support available · Enterprise & volume orders welcome
Technical Specifications
| Parameter | Value |
|---|---|
| Scanning Technology | Solid-state e-scanning |
| Max Range | ~30 m |
| Horizontal FOV | Wide angle |
| Wavelength | 905 nm |
| Laser Class | Class 1 (IEC 60825-1) |
| Power Consumption | ≤ 8 W |
| Weight | 160 g |
| Window Area | 2 cm² |
| IP Rating | IP67 |
| Operating Temp | -40 °C to +85 °C |
| Certifications | ISO 26262 ASIL-B, CE, FCC |
| Interface | Ethernet (100BASE-T1) |
Have a question about the Hesai FTX?
Our engineering team can help with integration advice, evaluation samples, SDK support, and volume pricing for your project.
