AT Series
›

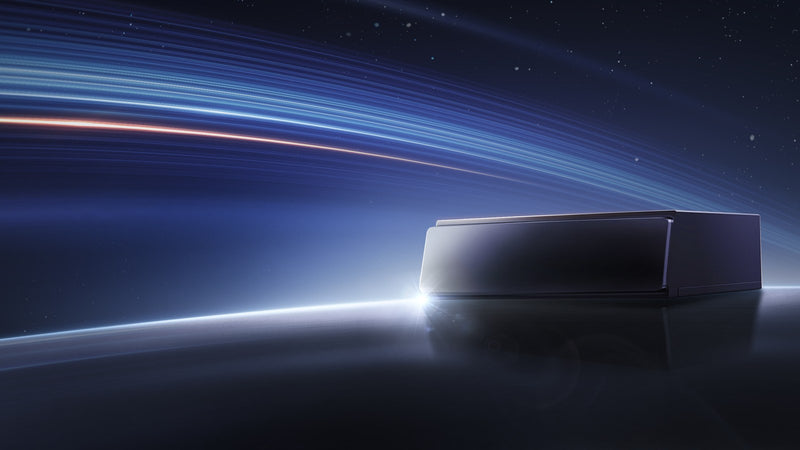

Hesai ATX
Hesai ATX
Compact automotive LiDAR — 60% smaller than AT128 with equivalent detection performance for flexible vehicle integration.
Channels128
Max Range200 m
H-FOV120°
V-FOV25.6°
Unit Price (USD)
$3,500.00
Pricing excludes shipping & applicable taxes. Contact us for volume pricing.
Exclusive Hesai distributor for Southeast Asia · Local technical support available · Enterprise & volume orders welcome
Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 128 |
| Max Range | 200 m |
| Horizontal FOV | 120° |
| Vertical FOV | 25.6° |
| Angular Resolution (V) | 0.2° |
| Point Rate | 2.56 Mpt/s |
| Wavelength | 905 nm |
| Laser Class | Class 1 (IEC 60825-1) |
| Power Consumption | ≤ 22 W |
| Weight | 380 g |
| IP Rating | IP67 |
| Operating Temp | -40 °C to +85 °C |
| Certifications | ISO 26262 ASIL-B, CE, FCC |
| Interface | Ethernet (100BASE-T1) |
Have a question about the Hesai ATX?
Our engineering team can help with integration advice, evaluation samples, SDK support, and volume pricing for your project.
